Daikin (Building) > VRV Air Cooled (RXQ-PAY1/ Normal Type (Space Saving Type))

Product Description :

An air conditioning system with the high capacity needed to suit large-sized buildings

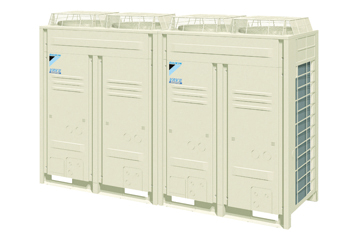

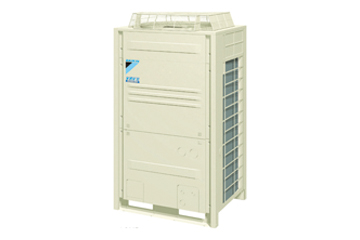

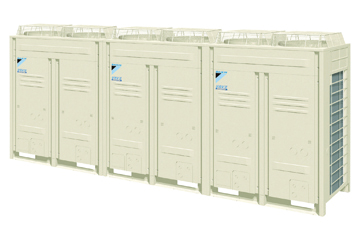

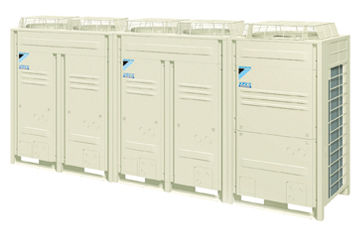

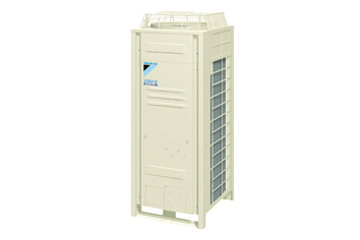

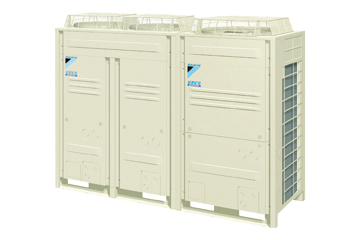

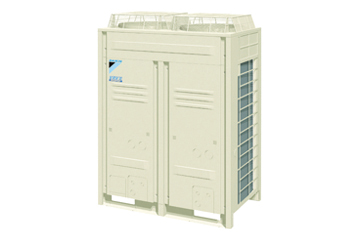

Outdoor units with large capacities
The VRVIII has a top output of 54 HP. By connecting main units (up to 18 HP each), a high-capacity system (up to 54 HP) can be configured that is both compact and flexible.

Wide range and large number of connectable indoor units
Daikin’s indoor unit system offers a large number of connectable indoor units—64.
Furthermore, our wide range of indoor units includes 15 types and 73 models to meet the needs of customers.

Long piping length
Long piping length provides greater design flexibility that is suitable for even large-sized buildings.
Max. actual piping length: 165 m
Max. equivalent piping length: 190 m
Max. total piping length: 1000 m
Max. total piping length: 90 m

High COPs
We have reached a high level of efficiency, thanks to advanced features such as the heat exchanger, grille, and dual DC fans.

High external static pressure 78.4 Pa (8 mm H2O)
High external static pressure has been achieved thanks to the fan grilles and the dual DC fans that reduce internal pressure loss.
Daikin offers 78.4 Pa (8 mm H2O) external static pressure by field setting to meet the requirements for installation on each floor, a condition often requested for large-sized buildings.
